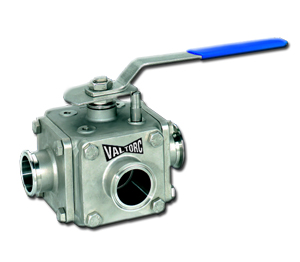

SANITARY 3-WAY BALL VALVE





3-Way 스테인리스 위생 볼 밸브는 1/2"부터 4"까지 4-seat 또는 5-seat으로 제작됩니다. 온도범위는 -30℃ ~ 205℃이고 압력은퇴대 1000 PSI (1/2" - 1") 까지입니다.





Series 520-SN (3-Way - Optional 4/5 Way Sanitary Valve)





2-seated 분리 밸브나 다른 다방향 밸브와는 다르게 520-SN 시리즈는 4-시트로 구성되어 밸브가 잠겼을때 완벽한 차단이 가능합니다. 뛰어난 성능의 패킹으로 다양한 압력과 온도조건에서 견고한 밀폐가 가능하여 제품 수명을 늘리고 정비 비용을 감소시킬 수 있습니다.



SANITARY 3-WAY BALL VALVE SERIES; STAINLESS STEEL



The 520-SN is a true multi-way sanitary style ball valve witj balanced seat construction. Porting and shut-off capabilitiescan reduce the number of process valves required in a piping system. This full port valve is available in a number of flow configurations with both clamp and tube butt weld end connections. Lateral forces in a e-way valve can cause unwanted seat distirtion. Stem/ball isolation prevents side loading and wear of downstream seats improving performance and service life. The series 520-SN valve offers the following add-on options: 4 or 5 way construction with multiple flow patterns, clamp, tube butt weld, extended tube butt weld or compressionend connections and finer internal surface are avilable upon request.



PHARMACEUTICAL, FOOD & BEVERAGE AND MEDICAL VALVE APPLICATIONS



The 520-SN is an ideal choice valve for the pharmaceutical, food/drinking water/beverage and medical industries. With optical cavity fileer, the 520-SN would be perfect for handling food, drinking water and medical chemicals/waste. The cavity filler will enable and ensure the reduction od contamination and particles embedding in areas od the valve and ball.



▶Available in sizes 1/2" - 4"

▶Up to 1000 PSI

▶Temperature range: -30 to 205℃

▶Balanced 4-Seat of 5 Seat construction

▶Trunnion mounting ball (1 1/2" - 4")

▶Provides engeneers greater design flexibility

▶ISO 5211 mounting pad for valve automation

▶All valves tested ANSI/ASME B16.34 and API598

▶All material comply with applicable ASTM material spefications; all soft wetted parts comply with FDA CFT Title 21; Part 177

▶Optional connecting ends include: tri-clamp, tube butt weld, extended butt weld or compreddions end connections

▶Blow-out-proof stem - stem is bottom loaded to prevent removal when vavle is in service

▶Full port design - full port construction improves flow characteristics for greater process efficiencies
