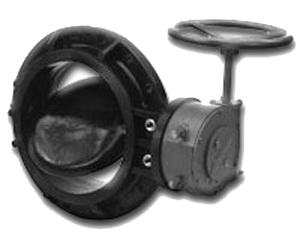

PVC GEAR OPERATOR BUTTERFLY VALVE

기어 PVC 버터플라이 밸브는 8"부터 24"까지 제작됩니다.

ANSI D-16.5 class 150 플랫 플랜지와 디스크 로테이션을 위한 스테인리스 섀프트가 같이 부착되어있습니다.

Series PVC-320 (Gear Operator Style)

Economical choise foe butterfly valves - our PVC butterfly valves are not noly durably and made from a heavy duty material - but also a very afforable and economic option to your project or service need. These butterfly valves are ideal for the following applications: water parks, fountains, aquarium, light-duty chemical and waste water.

▶Avaiable in wafer or lug butterfly valve types

▶Avaiable in sizes 8" - 24"

▶PVC / polypropylene body material

▶Easy installation due to narrow face to face design

▶One piece design

▶Standard polypropylene (PP) disc for higher temperature

▶Temperature rating of up to 82℃

▶Full body liner seat with integral flanges

▶Temperature rating of up to 82℃

▶Class 150#

▶EPDM, Viton or BUNA-N seats and (disc) O-ring available
