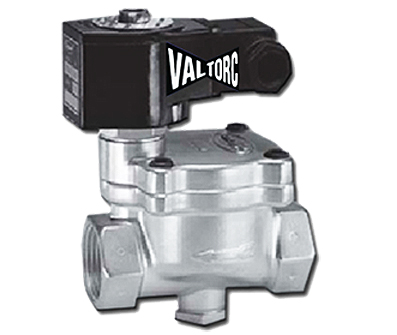

NPT/FLANGED SOLENOID VALVE

스테인리스 스틸 304/316 솔레노이드 밸브는 황동 혹은 청동으로 제작이 가능합니다. 2-way NPT (threaded)나 플랜지 규격으로 제공됩니다. 솔레노이드 밸브는 3/4" 부터 3"까지의 사이즈로 방폭이나 weather proof 하우징으로 제작됩니다.

Series 800NPT-FLG (Treaded and Flanged Connection Ends)

NPT and flanged stainless steel solenoid valves are offered in 304 stainless steel, 316 stainless steel and bronzee/brass body styles This solenoid valve is normally open or nomally closed with DIN 43560 connection, sncapsulated coils, IP65 and NEMA 4 protection. Shading coil is copper (in brass body) and silver (stainless steel body). Applications for this valve may include: Pumps spraying, laudry, irrigation, compressors, pollution controls, heating with high or low pressure steam, spraying, air and water treatment.

STAINLESS STEEL THREAD AND FLANGED SOLENOID VALVE BODY

▶Nomally open/normally closed design

▶Stainless steel body (304/316) available

▶Brass/bronze body also available

▶Available in sizes from 3/4" - 3"

▶Optional 150# flanged stainless steel as an adder

▶Temperature ranges up to 180℃ (PTFE seats)

▶Available with BUNA N, EPDM, FKM and/or PTFE seats

▶Pressure loads up to 225 PSI (PTFE seats)

▶Optional energized coil indicator light

▶Optional explosion proof and weather proof body designs

▶Optional manual operator on main passage and or pilot orifice
