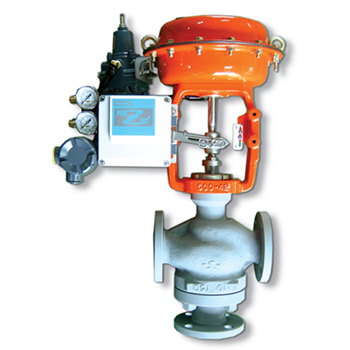

[서전발맥] [3way컨트롤밸브] VM-3100, 3200 Series
제품특성
공압식 컨트롤밸브 VM-3100,3200 Series
제조사: 서전발맥
| Specification | ||
| 모델명 | VM-3100 Series | |
|
재질 |
Body | SCPH 2(A216 WCB), SCS 13(A351 CF8), SCS 14(A351 CF8M), Etc. |
| Trim | SCS14(A351 CF8M), SCS14-Stellite Hardfacing, Etc. | |
| Packing | V-PTFE, Graphite, Etc. | |
| Gasket | SUS 304+PTFE or Graphite Spiral Wound Ring | |
| 사용압력 | JIS 10, 20, 40kgf/㎠ ANSI 150, 300, 600Lb DIN 5~40bar |
|
| 연결부 |
R.F & F.F Flanged, Socket Welding, Butt Welding, Threaded, Etc. |
|
| 사용온도 | 5~230℃ , Option -196~815℃ | |
| 액츄에이터 |
Multi Spring for Single Acting Pneumatic Diaphragm Actuator, Pneumatic Cylinder |
|
