DUCTILE IRON KNIFE GATE VALVE





연성 철나이프 게이트 밸브는 2"부터 24"까지 제작 가능하며 요청에 따라 BUNA와 EPDM으로 제공됩니다.

MSS SP-81 face-to-face dimension and flanged dimension. 에폭시 파우더로 코팅되었고 단단한 주물로 제작됩니다.

양방향이고 게이트 밀폐식이며 0부터 150 PSI까지 작동합니다.

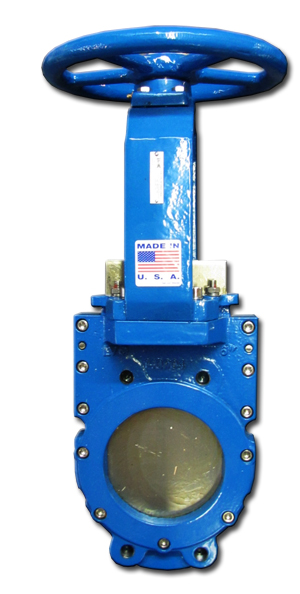

Series 5000 (Ductile Iron Body Knife Gate Valve)



 The heavy duty cast Dutile iron body knife gate valve is available with side flanges for easy bold on installantion. Replaceable natural rubber seats provide a bi-directional movement and bubble tight seal. Seals the gate from 0-150 PSI. Seat is flush with the bottom of the valve seat is a molded in steel reinforcement and is bolted into place to prevent shifting out od position. Ideal industries would be mining, power,chemical,waste water, petroleum, pulp and food processing.





DUCTILE IRON BODY KNIFE GATE VALVE



▶Avaliable sizes 2" - 24"

▶Heavy duty ductile iron valve body

▶Manual or actuation available

▶Epoxy powder coated body

▶MSS-SP-81 face to face dimensions and flange dimensions: full port ID

▶Bi-directional bubble tight shut off

▶0-150 PSI working pressure

▶Seat is quick and easy to replace

▶Seat is flush with bottom of valve port

▶ZERO cavities; eliminating pockets in the bottom that may collect material

▶Rubber seat as a molded in steel reinforcement and is bolted in place to prevent

    vibration or movement

▶Full packing seal around the valve gate reduces packing leakage

▶Available for the most regged service and industries

▶Optional BUNA and EPDM and seats available by request



HEAVY DUTY Knife gate Series 5000 Valves cast ductile iron body and yoke for the most

rugged service through bolting on side flange bolts allow easy installation.

Features replaced natural rubber seat provieds a BI-DIRECTIONAL BUBBLE TIGHT SEAT

across gate from 0 to 150 PSI. Seat is quick and easy to replace.



▶SEAT IS FLUSH with the bottom of the port ELIMINATING pocket in the bottom of

   the valve that may collect material in media such as slurries, pellsts or powders.

   Rubber seat hasa MODULE-IN STEEL REINFORCEMENT AND IS bolted in place to

   prevent shifting out of  position by gate movement.

▶EASY CONVERSION from hand wheel operator to hydraulic or pneumatic cylinder,

    bevel gear, chain-wheel, electric motor, or fail safe spring cylinder operator using

    existing cast yoke.

▶ENCLOSED BRASS STEM BUSHING provides reduced oprating torque and protection

    of the stem bushing from harsh environments.

▶FULL PACKING SEAL around gate minimizes packing leakage.
